Power: DC 10-30V
Temperature: -40C to 120C
Temperature Accuracy: 0.5C(25C)
Humidity: 0%RH to 99%RH
Humidity Accuracy: 3%RH(60%,25C)

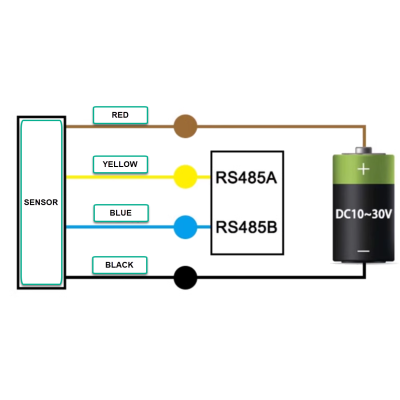

Interface: RS485 (Modbus)
Register Address
(decimal) |
PLC or Config Addr
(decimal) |
Content |
| 500 |
40501 |
Humidity Value(10 times the actual value) |
| 501 |
40502 |
Temperature Value (10 times the actual value) |
| 502 |
40503 |
Noise Value (10 times the actual value) |
| 503 |
40504 |
PM2.5/Co2 Value (actual value) |
| 504 |
40505 |
PM10 Value (actual value) |
| 505 |
40506 |
Atmospheric Pressure |
| 506 |
40507 |
20W Lux value high 16bits(actual value) |
| 507 |
40508 |
20W Lux value lower 16bits(actual value) |
